INNESTO RAPIDO

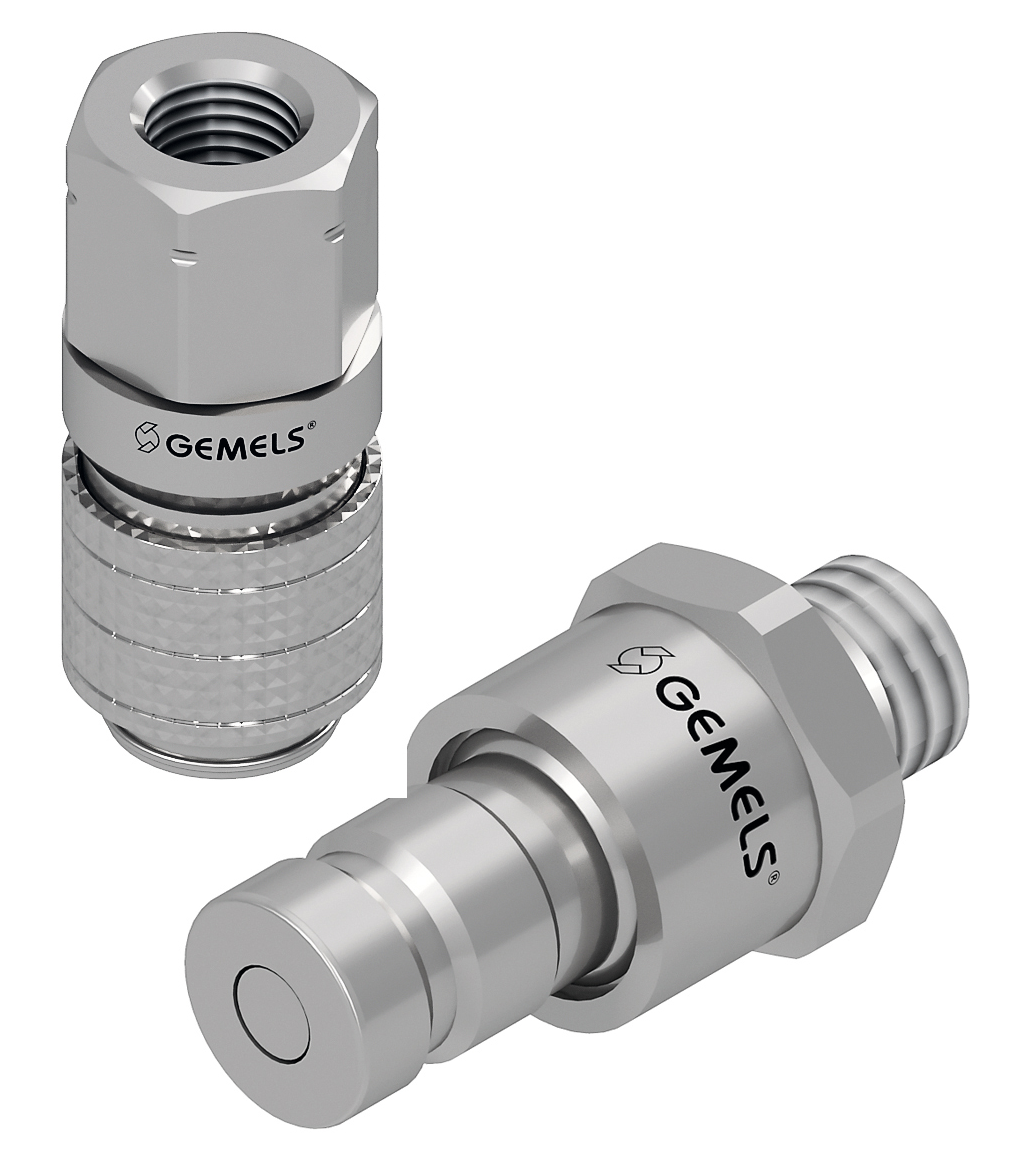

DG - ISO 15171-1 INNESTO RAPIDO DIAGNOSTIC

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN6
Pressione fino a PN500
Dettagli Tecnici
QUICK COUPLINGS ISO 15171-1 DG (male-female) FEMALE THREAD ISO 1179-1 BSPP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC19G010000 QC DG G 1/8 MALE 6.3 50 42.8 19 12.6 G 1/8 0.039
NC20G010000 QC DG G 1/8 FEMALE 6.3 50 24 50 21 G 1/8 0.048
NC19G010001 QC DG G 1/4 MALE 6.3 50 42.8 19 12.6 G 1/4 0.049
NC20G010001 QC DG G 1/4 FEMALE 6.3 50 24 50 21 G 1/4 0.05
QUICK COUPLINGS ISO 15171-1 DG (male-female) FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC19N010000 QC DG N 1/8 MALE 6.3 50 42.8 19 12.6 N 1/8 0.039
NC20N010000 QC DG N 1/8 FEMALE 6.3 50 24 50 21 N 1/8 0.048
NC19N010001 QC DG N 1/4 MALE 6.3 50 42.8 19 12.6 N 1/4 0.049
NC20N010001 QC DG N 1/4 FEMALE 6.3 50 24 50 21 N 1/4 0.05
QUICK COUPLINGS ISO 15171-1 DG (male-female) FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC19T010000 QC DG SAE4 MALE 6.3 50 42.8 19 12.6 SAE 4 M 0.049
NC20S010000 QC DG SAE 4 FEMALE 6.3 50 24 50 21 SAE 4 0.05
Download: Cataloghi e Disegni

QUICK COUPLINGS DG

DATASHEET
pdf ( 871.57 KB )
