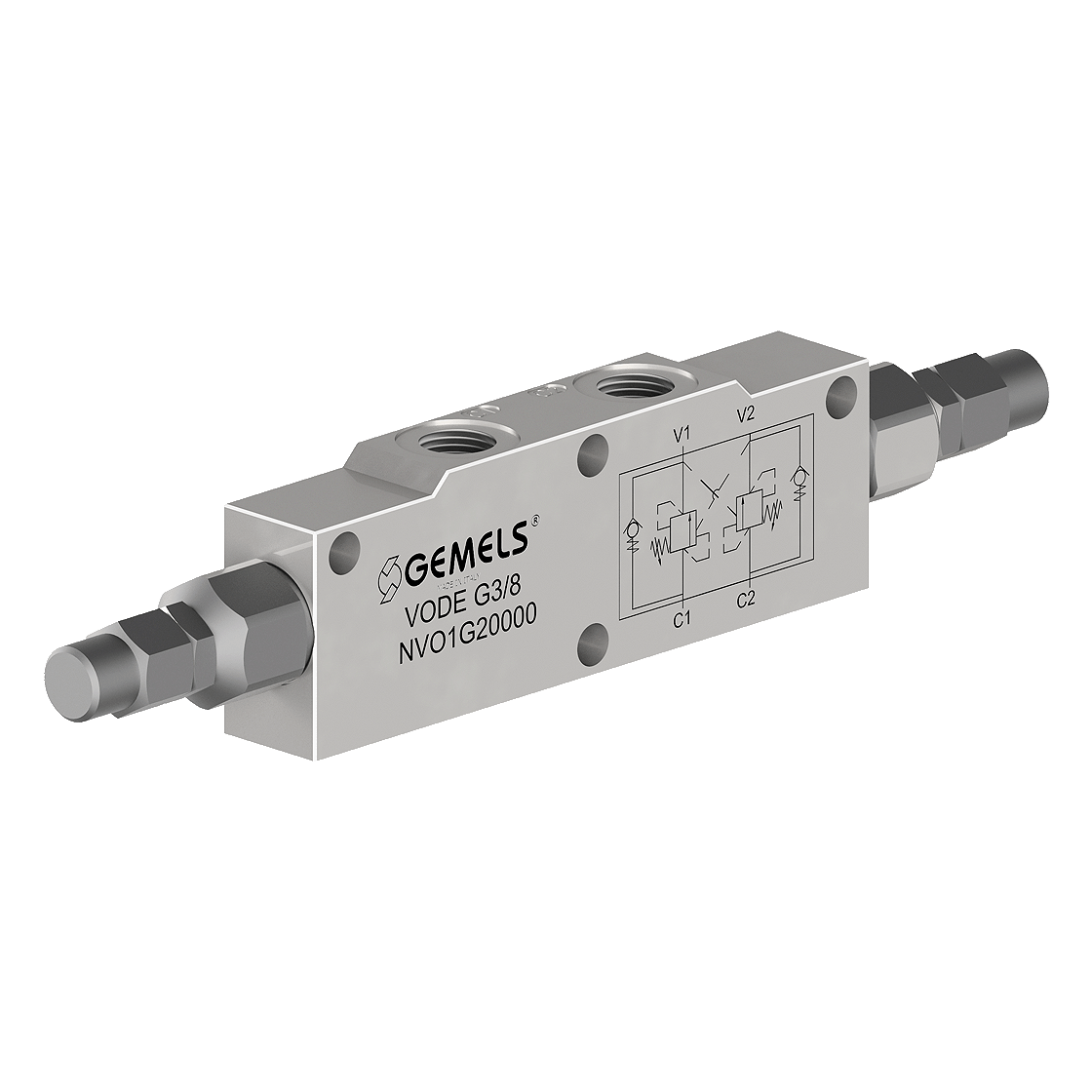

VALVOLA OVERCENTER DOPPIO EFFETTO

VODE

valvole idrauliche overcenter doppio effetto

Scheda Tecnica

Carbon Steel

Tipo VALVOLA OVERCENTER DOPPIO EFFETTO

Dimensioni dal DN6 al DN20

Filettature BSP-NPT-SAE

Pressione fino a PN350

Temperatura range da -20°C fino a +90°C

Dettagli Tecnici

DIN/ISO 228 BSP

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
NVO1G010000			VODE G 1/4	6		35	50							258										150																				30		25												8.5					48	104							G 1/4						4.25:1									54					6-35	30								10		6	38	1.42	134
NVO1G020000			VODE G 3/8	10		35	50							258										150																				40		25												8.5					48	104							G 3/8						4.25:1									54					3-35	30								10		6	38	1.39	134
NVO1G030000			VODE G 1/2	13		35	60							258										150																				60		30												8.5					50	110							G 1/2						4.25:1									54					6-35	30								-		8	44	2	30
NVO1G040000			VODE G 3/4	20		35	80							304										190																				90		35												8.5					65	143							G 3/4						6.25:1									57					6-35	30								-		8	64	3.8	44

ANSI/ASME B1.20.1 NPT

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
NVO1N010000			VODE N 1/4	6		35	50							258										150																				30		25												8.5					48	104							N 1/4						4.25:1									54					6-35	30								10		6	38	1.42	134
NVO1N020000			VODE N 3/8	10		35	50							258										150																				40		25												8.5					48	104							N 3/8						4.25:1									54					3-35	30								10		6	38	1.39	134
NVO1N030000			VODE N 1/2	13		35	60							258										150																				60		30												8.5					50	110							N 1/2						4.25:1									54					6-35	30								-		8	44	2	30
NVO1N040000			VODE N 3/4	20		35	80							304										190																				90		35												8.5					65	143							N 3/4						6.25:1									57					6-35	30								-		8	64	3.8	44

SAE J1926-1

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
NVO1S010000			VODE SAE 4	6		35	50							258										150																				30		25												8.5					48	104							7/16 UNF						4.25:1									54					6-35	30								10		6	38	1.42	134
NVO1S020000			VODE SAE 6	10		35	50							258										150																				40		25												8.5					48	104							9/16 UNF						4.25:1									54					3-35	30								10		6	38	1.39	134
NVO1S030000			VODE SAE 8	13		35	60							258										150																				60		30												8.5					50	110							3/4 - 16 UNF						4.25:1									54					6-35	30								-		8	44	2	30
NVO1S040000			VODE SAE 12	20		35	80							304										190																				90		35												8.5					65	143							1 1/16 - 12 UNF						6.25:1									57					6-35	30								-		8	64	3.8	44

Download: Cataloghi e Disegni

VODE

DATASHEET

pdf ( 1.91 MB )
