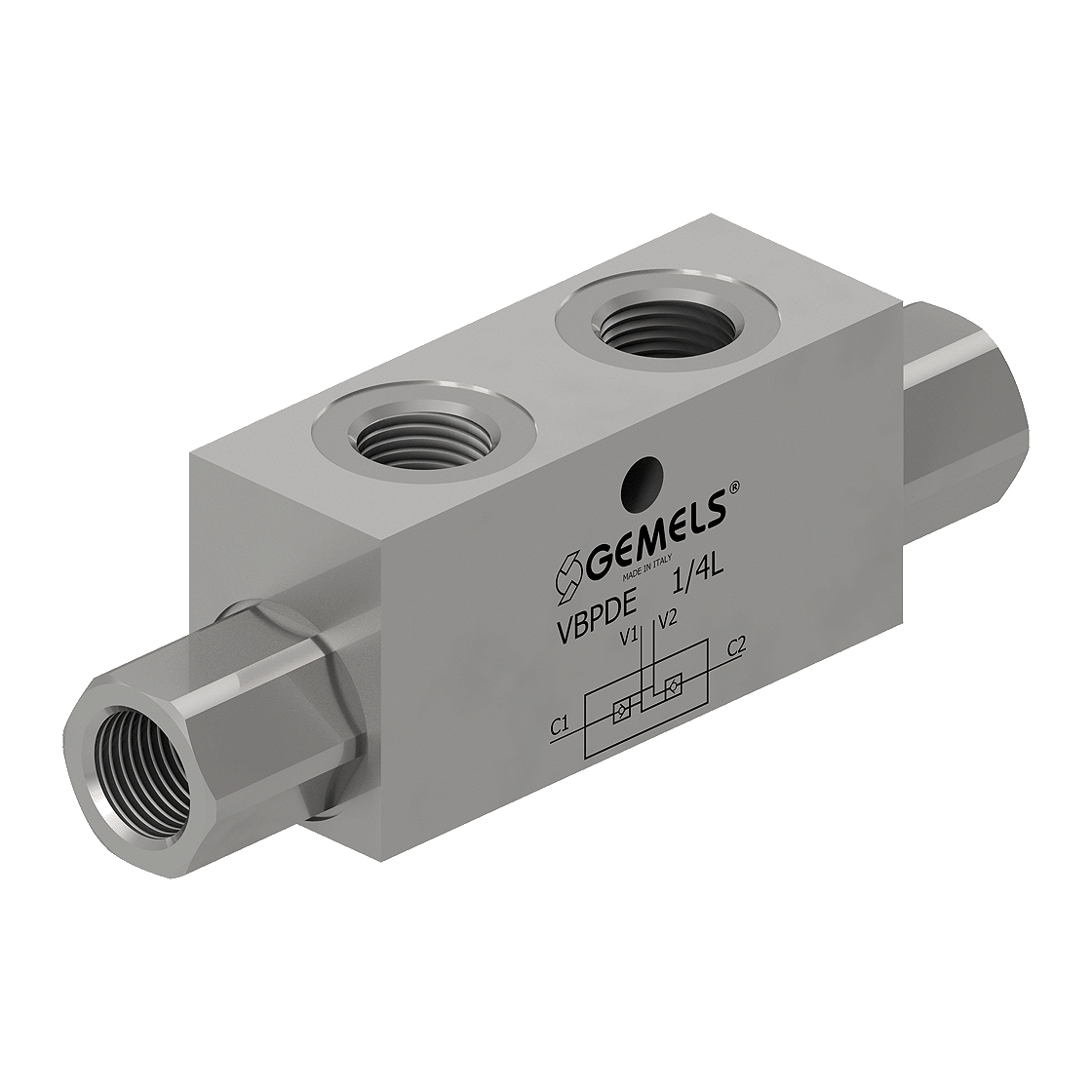

VAVLOLA DI BLOCCO PILOTATA SINGOLO/DOPPIO EFFETTO

VBP

double and single pilot operated check valves per industria pesante

Scheda Tecnica

Carbon Steel

Tipo VAVLOLA DI BLOCCO PILOTATA SINGOLO/DOPPIO EFFETTO

Dimensioni dal DN6 al DN50

Filettature BSP

Pressione fino a PN350

Temperatura range da - 20°C fino a +100°C

Dettagli Tecnici

VBPSE - SINGLE PILOT OPERATED CHECK VALVES

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
NVB2G010000			VBPSE 1/4" L																																															40												64	106.5	36	18.5	8												0.4	35										30										G 1/4"					0.612
NVB2G020000			VBPSE 3/8" L																																															40												80	120	38	16	8												0.3	35										30										G 3/8"					0.706
NVB2G030000			VBPSE 1/2" L																																															45												90	133	45	17	12.5												0.6	35										35										G 1/2"					0.994
NVB2G040000			VBPSE 3/4" L																																															60												100	182	46	36	12												0.2	35										40										G 3/4"					1.792

VBPDE - DOUBLE PILOT OPERATED CHECK VALVES

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
NVB1G010000			VBPDE 1/4"L																																															40												64	113	36	24.5	8												0.4	35										30										G 1/4"					0.636
NVB1G020000			VBPDE 3/8"L																																															40												80	128	38	24	8												0.3	35										30										G 3/8"					0.736
NVB1G030000			VBPDE 1/2" L																																															45												90	142	45	26	12.5												0.6	35										35										G 1/2"					1.042
NVB1G040000			VBPDE 3/4" L																																															60												100	192	46	46	12												0.2	30										40										G 3/4"					1.916

VBPDE CEXC - DOUBLE PILOT OPERATED CHECK VALVES FOR 12mm PIPE MOUNTING DIN(2353)

Item code			Tipo	DN	INCH	PN MPa	A mm	⌀A mm	⌀A/QC mm	B mm	⌀B mm	B1 mm	b mm	C mm	C-BSPP	C RF mm	C RTJ mm	C1 mm	Cavity L mm	Cavity L1 mm	C-D	ch mm	CS	D mm	D1 mm	d mm	⌀d mm	⌀d/QC mm	E mm	⌀E mm	⌀E linea mm	E1 mm	E2 mm	E3 mm	E4 mm	E5 mm	E6 mm	E7 mm	E8 mm	E9 mm	ES.V mm	F mm	F1 mm	Flow max l/min	Flow min-max l/min	G mm	⌀G mm	⌀G* mm	G1 mm	H mm	⌀H mm	H1 mm	I mm	I1 mm	ISO5211	J mm	K mm	⌀K mm	⌀K* mm	n°⌀K mm	⌀K1 mm	L mm	L1 mm	L2 mm	L3 mm	L4 mm	LSCH80 mm	⌀LW mm	⌀LW1 mm	M mm	⌀M mm	N mm	⌀N mm	O-ring	P mm	⌀P mm	Pilot Ratio	Pressure cracking MPa	Pressure max MPa	Pressure max peak MPa	Pressure max rotating MPa	Pressure max static MPa	Pressure max woking MPa	Q mm	⌀Q mm	R mm	⌀R mm	⌀RA mm	S mm	⌀S mm	Setting range MPa	Setting standard MPa	SW mm	SW1 mm	T mm	⌀T mm	U mm	V mm	V1 - V2 C1 - C2GAS - MET	W mm	W* mm	W1 mm	W2 mm	Weight kg	X mm	X* mm	⌀X mm	X1 mm	X-BSPP	Y mm	⌀Y mm	Y1 mm	⌀z mm
VBPDE 1/4″ L 2 CEXC-10L G 1/4″			VBPDE 1/4" L 2 CEXC-10L																																															40												64	125	36	160													0.7	35										30										G 1/4"					0.644
VBPDE 1/4″ L 2 CEXC G 1/4″			VBPDE 1/4" L 2 CEXC																																															40												64	130	36	160													0.4	35										30										G 1/4"					0.648
VBPDE 3/8″ L 2 CEXC G 3/8″			VBPDE 3/8" L 2 CEXC																																															40												64	130	36	166													0.4	35										30										G 3/8"					0.63

Download: Cataloghi e Disegni

VBP

DATASHEET

pdf ( 3.37 MB )
