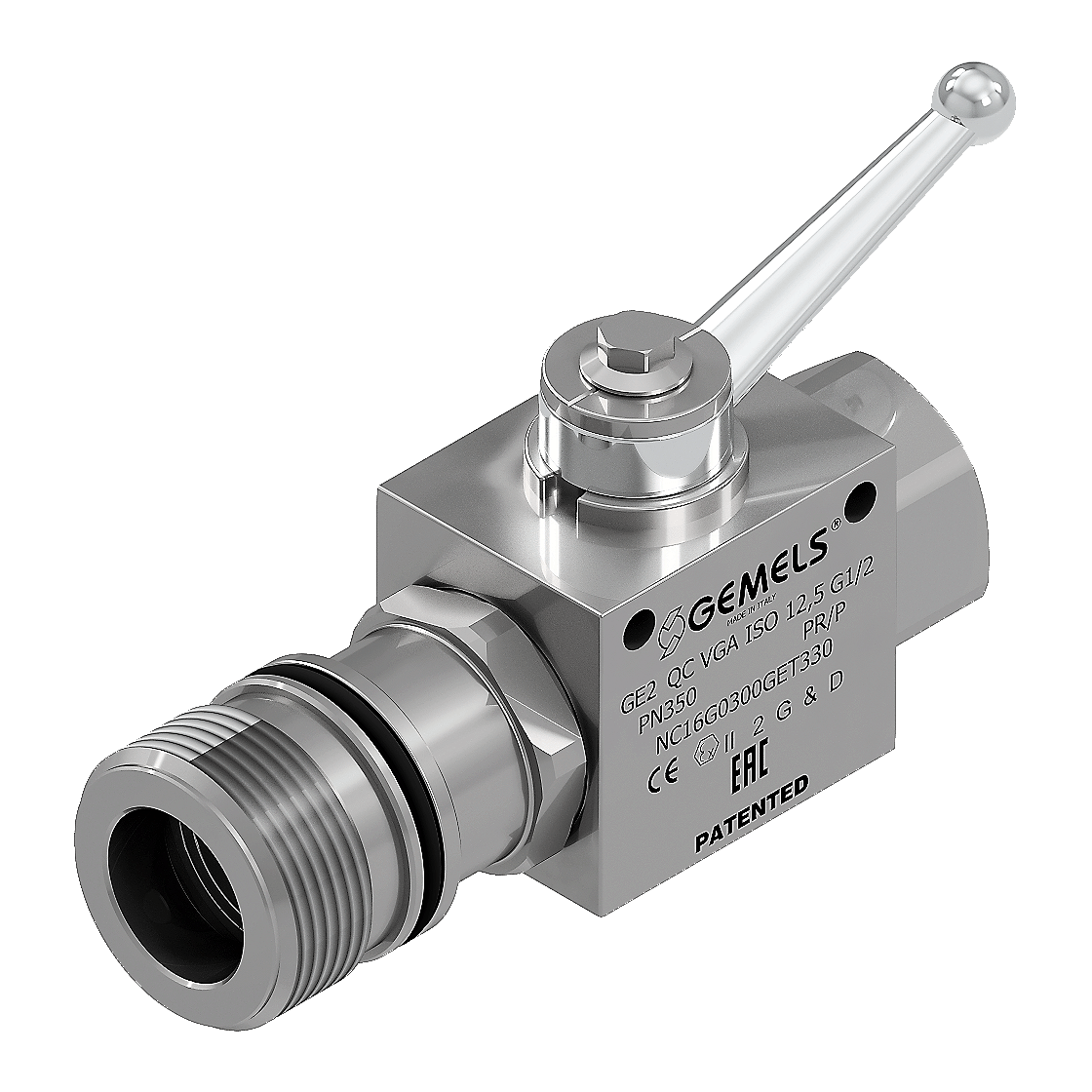

VALVOLA A SFERA CON INNESTO RAPIDO INTEGRATO

GE2 + VGA

valvola a sfera con innesto rapido integrato per agricoltura

Scheda Tecnica

Carbon Steel
Tipo GE2 + QC VGA
Dimensioni dal DN10 al DN25
Pressione fino a Pn420
Dettagli Tecnici
DIN/ISO 228 BSP + ISO 14541 SCREW-TO-CONNECT-COUPLINGS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC15G0200GET230 GE2 G3/8 + QC VGA 10 MALE 10 42 40 34 17.4 114.5 44.4 11 54.25 35 110 93 5.25 10 G 3/8 9 4.5 34
NC16G0200GET230 GE2 G3/8 + QC VGA 10 FEMALE 10 42 40 17.4 110 44.4 11 54.25 35 110 93 5.25 10 G 3/8 9 4.5 34
NC15G0300GET330 GE2 G1/2 + QC VGA 12,5 MALE 13 42 43 43 19.7 127.3 48.4 11 57 37 110 97 5.25 13 G 1/2 9 5 36
NC16G0300GET330 GE2 G1/2 + QC VGA 12,5 FEMALE 13 42 43 19.7 117 48.4 11 57 37 110 97 5.25 13 G 1/2 9 5 36
NC15G0400GET430 GE2 G3/4 + QC VGA 20 MALE 20 42 57 48 25.4 146.5 62.5 14 75.5 49 180 105 6.25 20 G 3/4 14 6 50
NC16G0400GET430 GE2 G3/4 + QC VGA 20 FEMALE 20 42 57 25.4 145.1 62.5 14 75.5 49 180 105 6.25 20 G 3/4 14 6 50
NC15G0500GET530 GE2 G1 + QC VGA 25 MALE 25 35 65 57 29.5 178.5 66.5 14 83.5 55 180 113 6.25 25 G 1 14 6 50
NC16G0500GET530 GE2 G1 + QC VGA 25 FEMALE 25 35 65 29.5 175 66.5 14 83.5 55 180 113 6.25 25 G 1 14 6 50
ANSI/ASME B1.20.1 NPT + ISO 14541 SCREW-TO-CONNECT-COUPLINGS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC15N0200GET230 GE2 N3/8 + QC VGA 10 MALE 10 42 40 34 17.4 114.5 44.4 11 54.25 35 110 93 5.25 10 N 3/8 9 4.5 34
NC16N0200GET230 GE2 N3/8 + QC VGA 10 FEMALE 10 42 40 17.4 110 44.4 11 54.25 35 110 93 5.25 10 N 3/8 9 4.5 34
NC15N0300GET330 GE2 N1/2 + QC VGA 12,5 MALE 13 42 43 43 19.7 127.3 48.4 11 57 37 110 97 5.25 13 N 1/2 9 5 36
NC16N0300GET330 GE2 N1/2 + QC VGA 12,5 FEMALE 13 42 43 19.7 117 48.4 11 57 37 110 97 5.25 13 N 1/2 9 5 36
NC15N0400GET430 GE2 N3/4 + QC VGA 20 MALE 20 42 57 48 25.4 146.5 62.5 14 75.5 49 180 105 6.25 20 N 3/4 14 6 50
NC16N0400GET430 GE2 N3/4 + QC VGA 20 FEMALE 20 42 57 25.4 145.1 62.5 14 75.5 49 180 105 6.25 20 N 3/4 14 6 50
NC15N0500GET530 GE2 N1 + QC VGA 25 MALE 25 35 65 57 29.5 178.5 66.5 14 83.5 55 180 113 6.25 25 N 1 14 6 50
NC16N0500GET530 GE2 N1 + QC VGA 25 FEMALE 25 35 65 29.5 175 66.5 14 83.5 55 180 113 6.25 25 N 1 14 6 50
SAE J1926-1 + ISO 14541 SCREW-TO-CONNECT-COUPLINGS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC15S0200GET230 GE2 SAE6 + QC VGA 10 MALE 10 42 40 34 17.5 114.5 44.4 11.1 54.25 35 110 93 5.25 10 9/16 UNF 9 4.5 34
NC16S0200GET230 GE2 SAE6 + QC VGA 10 FEMALE 10 42 40 17.5 110 44.4 11.1 54.25 35 110 93 5.25 10 9/16 UNF 9 4.5 34
NC15S0300GET330 GE2 SAE8 + QC VGA 12,5 MALE 13 42 43 43 19.7 127.3 48.4 11.1 57.25 37 110 97 5.25 13 3/4 UNF 9 5 36
NC16S0300GET330 GE2 SAE8 + QC VGA 12,5 FEMALE 13 42 43 19.7 117 48.4 11.1 57.25 37 110 97 5.25 13 3/4 UNF 9 5 36
NC15S0400GET430 GE2 SAE12 + QC VGA 20 MALE 20 42 57 48 25.4 146.5 62.5 14.35 75.5 49 180 105 6.25 20 1 1/16 UNF 14 6 50
NC16S0400GET430 GE2 SAE12 + QC VGA 20 FEMALE 20 42 57 25.4 145.1 62.5 14.35 75.5 49 180 105 6.25 20 1 1/16 UNF 14 6 50
NC15S0500GET530 GE2 G1 + QC VGA 25 MALE 25 35 65 57 29.5 178.5 66.5 14.35 83.5 55 180 113 6.25 25 1 5/16 UNF 14 6 50
NC16S0500GET530 GE2 G1 + QC VGA 25 FEMALE 25 35 65 29.5 175 66.5 14.35 83.5 55 180 113 6.25 25 1 5/16 UNF 14 6 50
DIN 2353 HEAVY SERIES + ISO 14541 SCREW-TO-CONNECT-COUPLINGS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC15H0200GET230 GE2 12S + QC VGA 10 MALE 10 42 40 34 17.4 116 44.4 11 54.25 35 110 93 5.25 10 M20×1,5 12 9 4.5 34
NC16H0200GET230 GE2 12S + QC VGA 10 FEMALE 10 42 40 17.4 109.5 44.4 11 54.25 35 110 93 5.25 10 M20×1,5 12 9 4.5 34
NC15H0201GET230 GE2 14S + QC VGA 10 MALE 10 42 40 34 17.4 119.2 44.4 11 54.25 35 110 93 5.25 10 M22×1,5 14 9 4.5 34
NC16H0201GET230 GE2 14S + QC VGA 10 FEMALE 10 42 40 17.4 112.7 44.4 11 54.25 35 110 93 5.25 10 M22×1,5 14 9 4.5 34
NC15H0300GET330 GE2 16S + QC VGA 12,5 MALE 13 42 43 43 19.7 130.3 48.4 11 57 37 110 97 5.25 13 M24×1,5 16 9 5 36
NC16H0300GET330 GE2 16S + QC VGA 12,5 FEMALE 13 42 43 19.7 120 48.4 11 57 37 110 97 5.25 13 M24×1,5 16 9 5 36
NC15H0301GET330 GE2 20S + QC VGA 12,5 MALE 13 42 43 43 19.7 132 48.4 11 57 37 110 97 5.25 13 M30×2 20 9 5 36
NC16H0301GET330 GE2 20S + QC VGA 12,5 FEMALE 13 42 43 19.7 122 48.4 11 57 37 110 97 5.25 13 M30×2 20 9 5 36
NC15H0400GET430 GE2 25S + QC VGA 20 MALE 20 42 57 48 25.4 154 62.5 14 75.5 49 180 105 6.25 20 M36×2 25 14 6 50
NC16H0400GET430 GE2 25S + QC VGA 20 FEMALE 20 42 57 25.4 153.1 62.5 14 75.5 49 180 105 6.25 20 M36×2 25 14 6 50
NC15H0500GET530 GE2 30S + QC VGA 25 MALE 25 35 65 57 29.5 182.6 66.5 14 83.5 55 180 113 6.25 25 M42×2 30 14 6 50
NC16H0500GET530 GE2 30S + QC VGA 25 FEMALE 25 35 65 29.5 179.1 66.5 14 83.5 55 180 113 6.25 25 M42×2 30 14 6 50
NC15H0501GET530 GE2 38S + QC VGA 25 MALE 25 35 65 57 29.5 188 66.5 14 83.5 55 180 113 6.25 25 M52×2 38 14 6 50
NC16H0501GET530 GE2 38S + QC VGA 25 FEMALE 25 35 65 29.5 184.5 66.5 14 83.5 55 180 113 6.25 25 M52×2 38 14 6 50
DIN 2353 LIGHT SERIES + ISO 14541 SCREW-TO-CONNECT-COUPLINGS
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC15L0200GET230 GE2 10L + QC VGA 10 MALE 10 42 40 34 17.4 116.2 44.4 11 54.25 35 110 93 5.25 8 M16×1,5 10 9 4.5 34
NC16L0200GET230 GE2 10L + QC VGA 10 FEMALE 10 42 40 17.4 109.7 44.4 11 54.25 35 110 93 5.25 8 M16×1,5 10 9 4.5 34
NC15L0201GET230 GE2 12L + QC VGA 10 MALE 10 42 40 34 17.4 117.8 44.4 11 54.25 35 110 93 5.25 10 M18×1,5 12 9 4.5 34
NC16L0201GET230 GE2 12L + QC VGA 10 FEMALE 10 42 40 17.4 111.3 44.4 11 54.25 35 110 93 5.25 10 M18×1,5 12 9 4.5 34
NC15L0300GET330 GE2 15L + QC VGA 12,5 MALE 13 42 43 43 19.7 129.3 48.4 11 57 37 110 97 5.25 13 M22×1,5 15 9 5 36
NC16L0300GET330 GE2 15L + QC VGA 12,5 FEMALE 13 42 43 19.7 119 48.4 11 57 37 110 97 5.25 13 M22×1,5 15 9 5 36
NC15L0301GET330 GE2 18L + QC VGA 12,5 MALE 13 42 43 43 19.7 129.3 48.4 11 57 37 110 97 5.25 13 M26×1,5 18 9 5 36
NC16L0301GET330 GE2 18L + QC VGA 12,5 FEMALE 13 42 43 19.7 119 48.4 11 57 37 110 97 5.25 13 M26×1,5 18 9 5 36
NC15L0400GET430 GE2 22L + QC VGA 20 MALE 20 42 57 48 25.4 153.5 62.5 14 75.5 49 180 105 6.25 20 M30×2 22 14 6 50
NC16L0400GET430 GE2 22L + QC VGA 20 FEMALE 20 42 57 25.4 152.6 62.5 14 75.5 49 180 105 6.25 20 M30×2 22 14 6 50
NC15L0500GET530 GE2 28L + QC VGA 25 MALE 25 35 65 57 29.5 181 66.5 14 83.5 55 180 113 6.25 25 M36×2 28 14 6 50
NC16L0500GET530 GE2 28L + QC VGA 25 FEMALE 25 35 65 29.5 177.5 66.5 14 83.5 55 180 113 6.25 25 M36×2 28 14 6 50
NC15L0501GET530 GE2 35L + QC VGA 25 MALE 25 35 65 57 29.5 182 66.5 14 83.5 55 180 113 6.25 25 M45×2 35 14 6 50
NC16L0501GET530 GE2 35L + QC VGA 25 FEMALE 25 35 65 29.5 178.5 66.5 14 83.5 55 180 113 6.25 25 M45×2 35 14 6 50
Download: Cataloghi e Disegni

GE2 + VGA

DATASHEET
pdf ( 663.33 KB )
