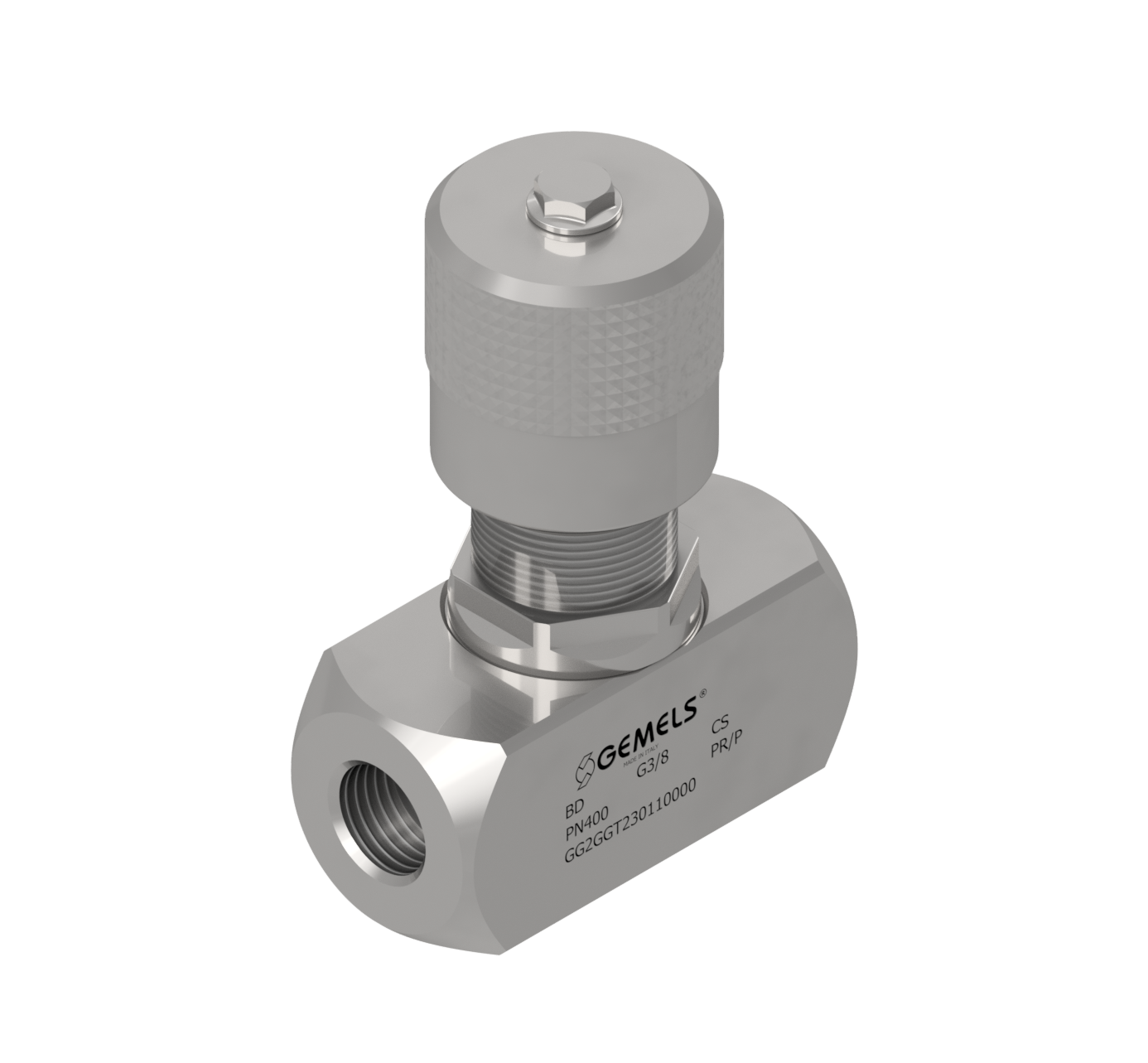

REGOLATORE DI FLUSSO BIDIREZIONALE

BD

flow control bi-directional per macchine sollevamento

Scheda Tecnica

Carbon Steel
Tipo REGOLATORE DI FLUSSO BIDIREZIONALE
Dimensioni da DN6 al DN25
Filettature BSP-NPT
Pressione fino a PN400
Temperatura range da -20°C fino a +100°C
Composizione Materiali
POS Description Q.ty Carbon Steel Stainless Steel
1 Body 1 1,0737
2 Caps 2 PVC
3 Stem 1 1,05
4 Stem o-ring 1 NBR
5 Stem ring 1 PTFE
6 Handle 1 ALLUMINIUM
7 Screw 1 DIN 7991 8.8
8 Screw 1 DIN 7991 8.8
Dettagli Tecnici
DIN/ISO 228 BSP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GG2GGT130110000 BD G 1/4 6 40 25 12.5 54 15 25 30 75 G 1/4 M20X1 0.05 0.33
GG2GGT230110000 BD G 3/8 10 40 25 12.5 54 30 25 30 75 G 3/8 M20X1 0.05 0.31
GG2GGT330110000 BD G 1/2 13 40 30 15 64 50 30 33 81 G 1/2 M25X1.5 0.05 0.48
GG2GGT430110000 BD G 3/4 20 40 40 20 81 80 40 42 110 G 3/4 M35X1.5 0.05 1.13
GG2GGT530110000 BD G 1 25 40 45 22.5 102 150 45 42 115 G 1 M35X1.5 0.05 1.5
ANSI/ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
GG2NNT130110000 BD N 1/4 6 40 25 12.5 54 15 25 30 75 N 1/4 M20X1 0.05 0.33
GG2NNT230110000 BD N 3/8 10 40 25 12.5 54 30 25 30 75 N 3/8 M20X1 0.05 0.31
GG2NNT330110000 BD N 1/2 13 40 30 15 64 50 30 33 81 N 1/2 M25X1.5 0.05 0.48
GG2NNT430110000 BD N 3/4 20 40 40 20 81 80 40 42 110 N 3/4 M35X1.5 0.05 1.13
GG2NNT530110000 BD N 1 25 40 45 22.5 102 150 45 42 115 N 1 M35X1.5 0.05 1.5
