INNESTI RAPIDI

ISO 16028 FFAP - FACCIA PIANA CONNESSIONE IN PRESSIONE

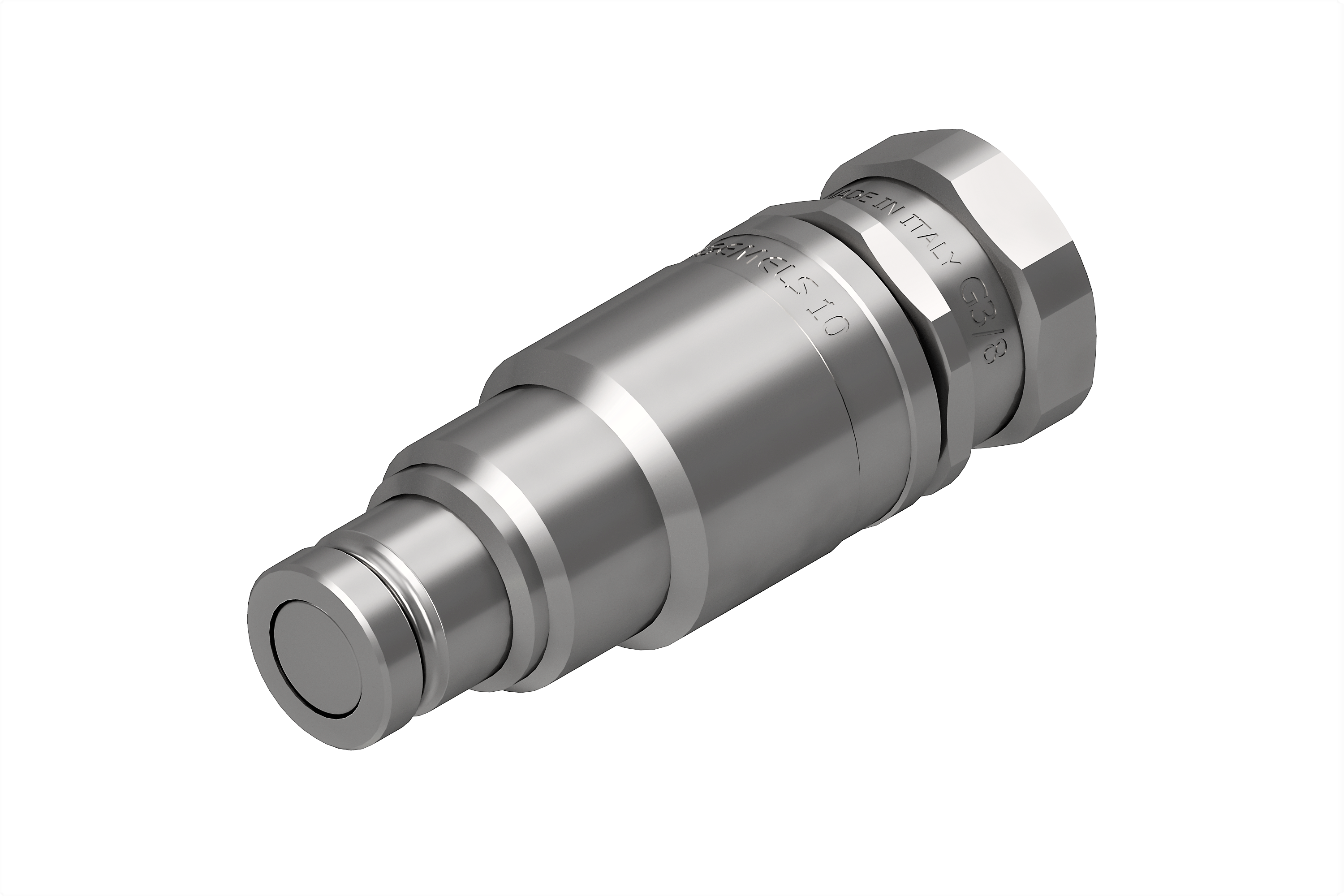

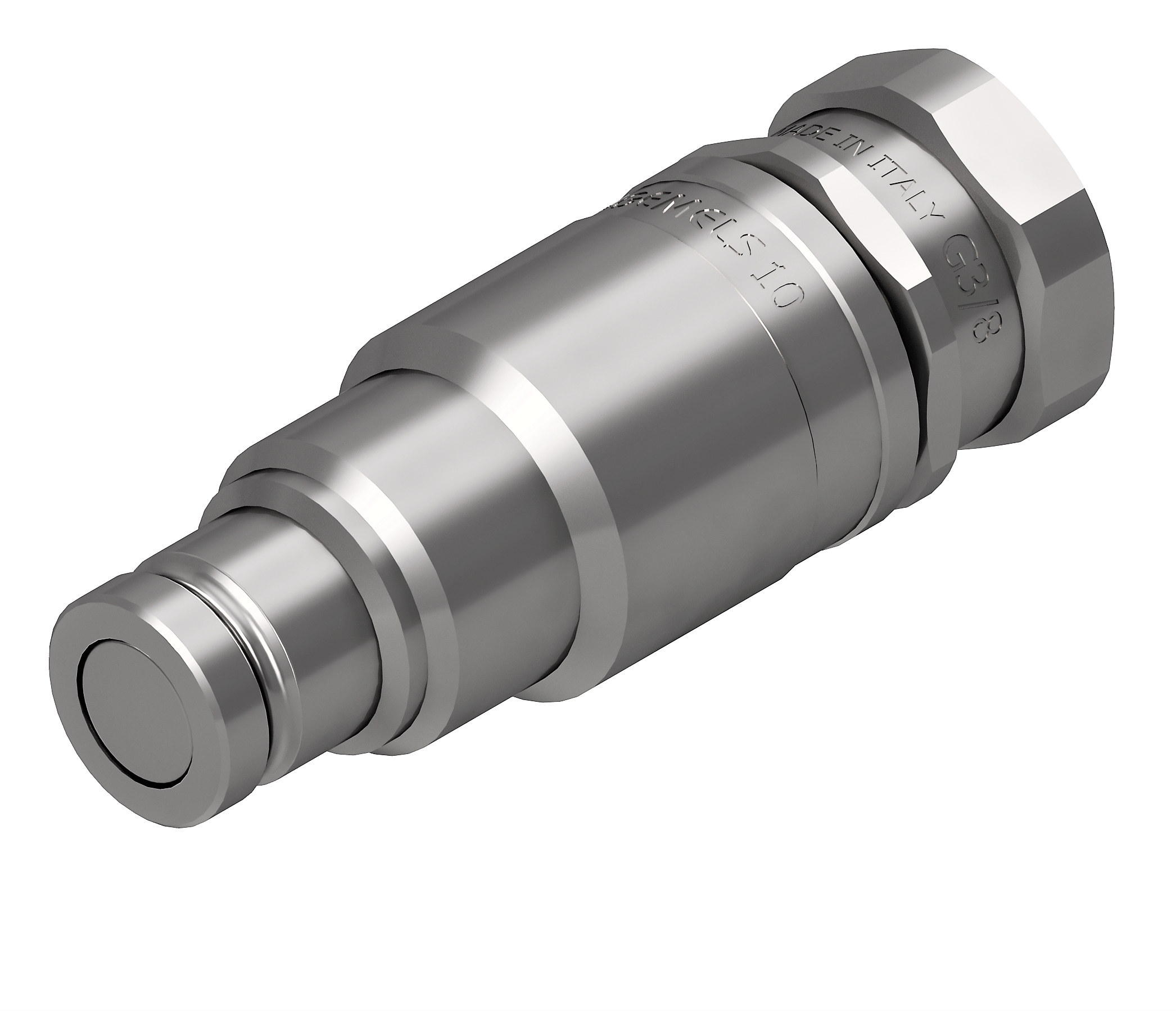

faccia piana con connessione in pressione

Scheda Tecnica

Carbon Steel
Tipo Innesti rapidi
Dimensioni dal DN10 al DN25
Pressione fino a PN420
Dettagli Tecnici
QUICK COUPLINGS FLAT FACE CONNECTION UNDER PRESSURE (FFAP) (male) FEMALE THREAD ISO 1179-1 BSPP
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC13G020000 QC FFAP G 3/8 MALE 10 42 91.5 30 19.75 G 3/8 0.3
NC13G020001 QC FFAP G 1/2 MALE 10 42 95.6 30 19.75 G 1/2 0.45
NC13G030000 QC FFAP G 1/2 MALE 12.5 42 103 34 24.5 G 1/2 0.65
NC13G030001 QC FFAP G 3/4 MALE 12.5 42 106 34 24.5 G 3/4 0.7
NC13G040000 QC FFAP G 3/4 MALE 19 35 128.5 41 29.95 G 3/4 0.85
NC13G040001 QC FFAP G 1 MALE 19 35 132 41 29.95 G 1 0.9
NC13G050000 QC FFAP G 1 MALE 25 35 143 50 36 G 1 1,35
NC13G050001 QC FFAP G1 1/4 MALE 25 35 145,7 50 36 G1 1/4 1,4
NC13G050002 QC FFAP G1 1/2 MALE 25 35 145,7 55 36 G1 1/2 1,45
QUICK COUPLINGS FLAT FACE CONNECTION UNDER PRESSURE (FFAP) (male) FEMALE THREAD ASME B1.20.1 NPT
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC13N020000 QC FFAP N 3/8 MALE 10 42 93.5 30 19.75 N 3/8 0.3
NC13N020001 QC FFAP N 1/2 MALE 10 42 98.3 30 19.75 N 1/2 0.45
NC13N030000 QC FFAP N 1/2 MALE 12.5 42 103 34 24.5 N 1/2 0.65
NC13N030001 QC FFAP N 3/4 MALE 12.5 42 106 34 24.5 N 3/4 0.7
NC13N040000 QC FFAP N 3/4 MALE 19 35 128.5 41 29.95 N 3/4 0.85
NC13N040001 QC FFAP N 1 MALE 19 35 132 41 29.95 N 1 0.9
NC13N050000 QC FFAP N1 MALE 25 35 143 50 36 N 1 1,35
NC13N050001 QC FFAP N1 1/4 MALE 25 35 145,7 50 36 N1 1/4 1,4
NC13N050002 QC FFAP N1 1/2 MALE 25 35 145,7 55 36 N1 1/2 1,45
QUICK COUPLINGS FLAT FACE CONNECTION UNDER PRESSURE (FFAP) (MALE) FEMALE THREAD ISO 11926-1 (SAE J1926-1) ORB
Item code Tipo DN INCH PN MPa A mm ⌀A mm ⌀A/QC mm B mm ⌀B mm B1 mm b mm C mm C-BSPP C RF mm C RTJ mm C1 mm Cavity L mm Cavity L1 mm C-D ch mm CS D mm D1 mm d mm ⌀d mm ⌀d/QC mm E mm ⌀E mm ⌀E linea mm E1 mm E2 mm E3 mm E4 mm E5 mm E6 mm E7 mm E8 mm E9 mm ES.V mm F mm F1 mm Flow max l/min Flow min-max l/min G mm ⌀G mm ⌀G* mm G1 mm H mm ⌀H mm H1 mm I mm I1 mm ISO5211 J mm K mm ⌀K mm ⌀K* mm n°⌀K mm ⌀K1 mm L mm L1 mm L2 mm L3 mm L4 mm LSCH80 mm ⌀LW mm ⌀LW1 mm M mm ⌀M mm N mm ⌀N mm O-ring P mm ⌀P mm Pilot Ratio Pressure cracking MPa Pressure max MPa Pressure max peak MPa Pressure max rotating MPa Pressure max static MPa Pressure max woking MPa Q mm ⌀Q mm R mm ⌀R mm ⌀RA mm S mm ⌀S mm Setting range MPa Setting standard MPa SW mm SW1 mm T mm ⌀T mm U mm V mm V1 - V2 C1 - C2GAS - MET W mm W* mm W1 mm W2 mm Weight kg X mm X* mm ⌀X mm X1 mm X-BSPP Y mm ⌀Y mm Y1 mm ⌀z mm
NC13S020000 QC FFAP SAE6 MALE 10 42 92.6 30 19.75 9/16-18 UNF 0.3
NC13S020001 QC FFAP SAE8 MALE 10 42 95.6 30 19.75 3/4-16 UNF 0.45
NC13S030000 QC FFAP SAE8 MALE 12.5 42 103 34 24.5 3/4-16 UNF 0.65
NC13S030001 QC FFAP SAE12 MALE 12.5 42 108.5 34 24.5 1-1/16-12 UN 0.7
NC13S040000 QC FFAP SAE12 MALE 19 35 130 41 29.95 1-1/16-12 UN 0.85
NC13S040001 QC FFAP SAE16 MALE 19 35 132 41 29.95 1 5/16-12UN 0.9
NC13S050000 QC FFAP SAE16 MALE 25 35 143 50 36 1 5/16-12UN 1,35
NC13S050001 QC FFAP SAE20 MALE 25 35 145,7 50 36 1 5/8-12UN 1,4
Download: Cataloghi e Disegni

QUICK COUPLINGS FFAP

DATASHEET
pdf ( 1.29 MB )
